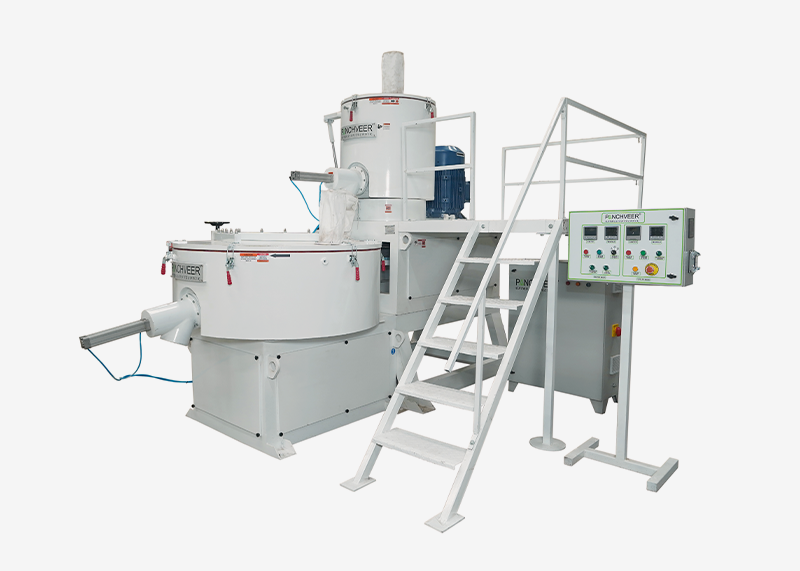

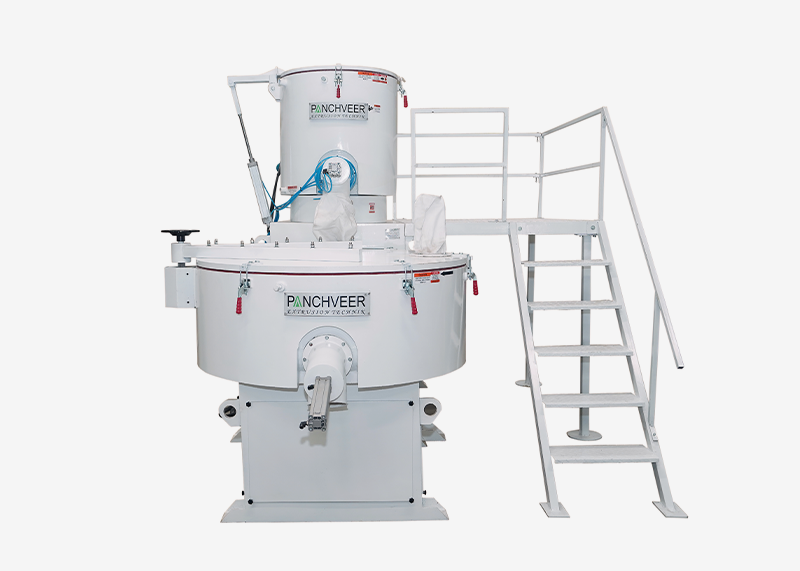

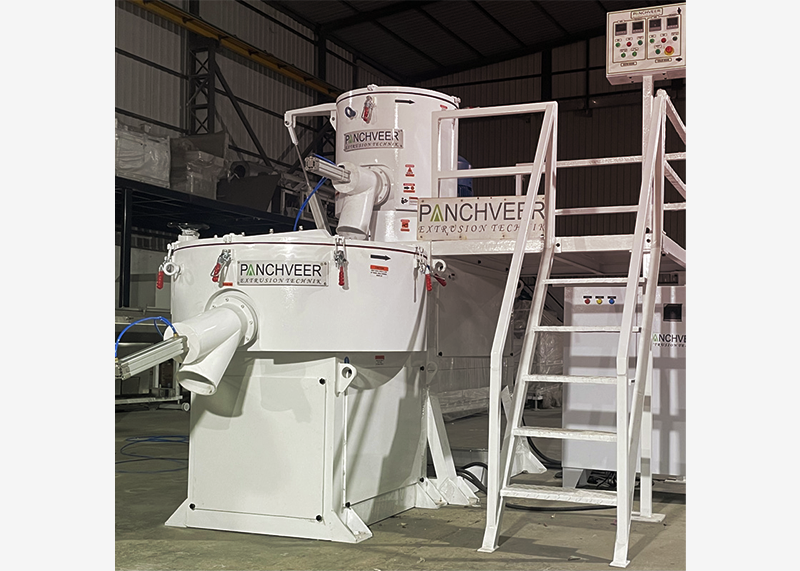

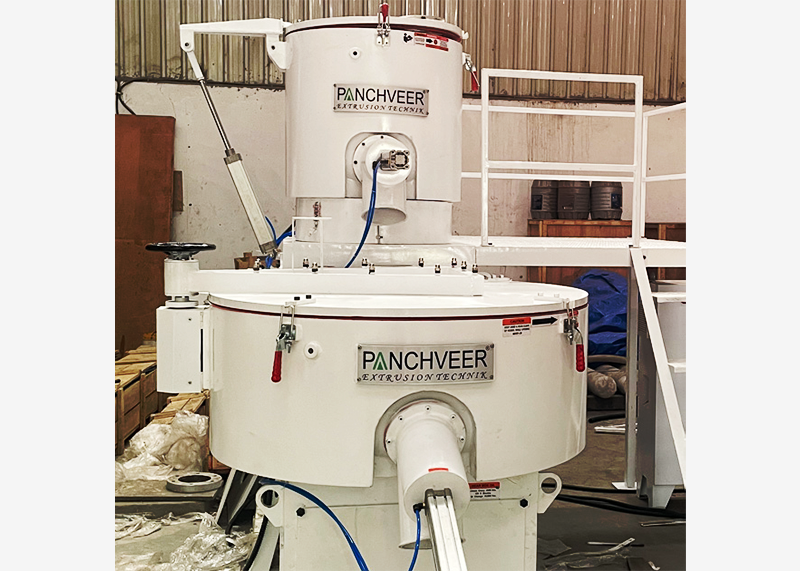

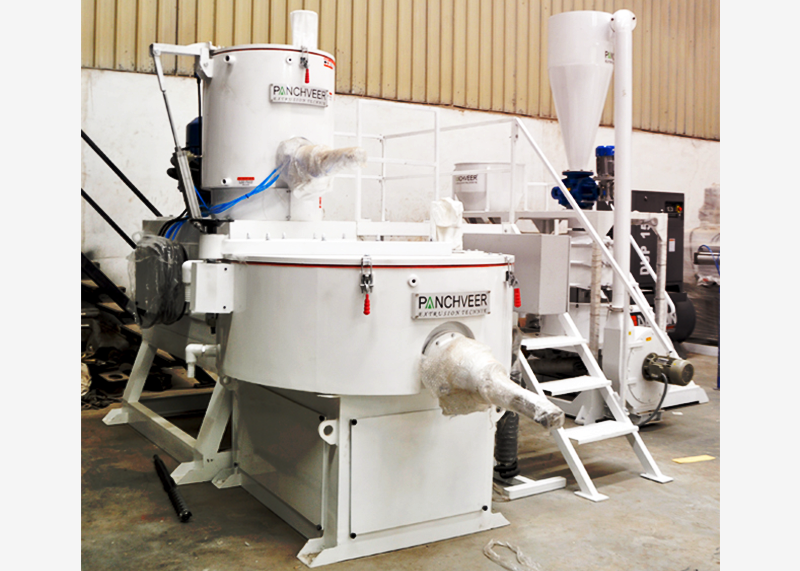

PVC Compounding Mixer / Heater Cooler Mixer
Panchveer Engineering make High Speed Heater with vertical Cooler mixer is an economical, robust solution for throughput volumes up to 1,000 kg/hour. A high-performance Three Tier angular mixing tool in the heater mixer generates friction to heat the product. At the same time, all recipe ingredients are evenly distributed throughout the mixture. When the desired target temperature has been reached, the mixture is transferred to the cooler mixer through the discharge Valve and the heating mixer is ready for the next batch.The material is cooled in the vertical cooler mixer by passing it gently across a cooled surface.
- Can be used for a wide range of different applications like homogenious mixing, coating, agglomerating, bonding, dispertion etc..
- Process-optimized mixing tools guarantee optimum energy input
- Selection of various designed & patented mixing tools for high quality homogenious mixing
- Optimum water circulation in cooler mixer jacket & cooling ring for high-performance cooling
- high-speed mixers are suitable for numerous applications and the manufacturing of a large number of products.
- PVC (rigid/soft)
- WPC
- Master batch
- Various compounds
- And many more
| Model For RPVC Pipe Compound | Batch Capacity (kg) | Mixer | Cooler | ||
|---|---|---|---|---|---|
| Vessel Capacity (Ltr) | Drive (kW) | Vessel Capacity | Drive (kW) | ||
| PMC 130/300 | 40 | 130 | 15 | 300 | 3.7 |
| PMC 200/400 | 70 | 200 | 30 | 400 | 3.7 |
| PMC 250/600 | 90 | 250 | 37 | 600 | 5.5 |
| PMC 350/1000 | 120 | 350 | 55 | 1000 | 7.5 |
| PMC 500/1500 | 200 | 500 | 110 | 1500 | 15 |
| PMC 750/2000 | 300 | 750 | 132 | 2000 | 18.5 |
| PMC1000/2500 | 400 | 1000 | 160 | 2500 | 22 |
